Transformer: Design

If a transformer is to be efficient, as much as possible of the magnetic flux created by the primary current must pass through the secondary coil.

This will not happen if these coils are widely separated from each other on the core. The school transformer is an inefficient device - but allows teachers to take it to pieces for you to view it.

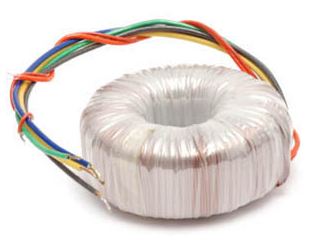

Magnetic losses may be reduced by adopting a design which has the two coils close together, eg by better core design, such as winding them on top of each other around the same part of a common core which also surrounds them.
