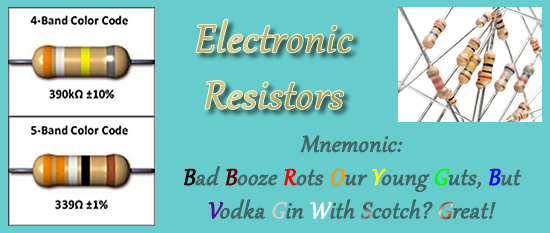

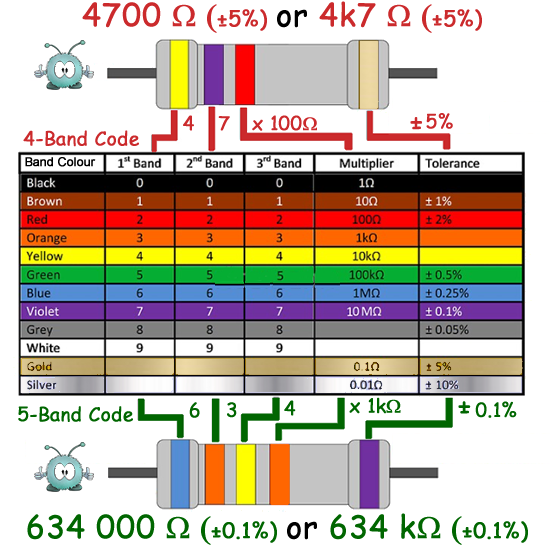

Resistor colour codesElectronic resistors are tiny. To print the value on them is impractical - therefore they have their values printed on them in a code. The tolerance band is always on its own - you need to position that to the right - you can then read its value. You could use a multimeter in its form as an ohmmeter to check you have read the code correctly. |
