Current Electricity
12.6 What does the current through an electrical circuit depend on? The size of the current in a circuit depends on how hard the supply tries to push charge through the circuit and how hard the circuit resists having charge pushed through it.
Candidates should use their skills, knowledge and understanding of how science works:


• to interpret and draw circuit diagrams using standard symbols. The following standard symbols should be known:



  • to apply the principles of basic electrical circuits to practical situations Simple feedback circuits - alarm systems - double switch circuits etc.
    Current-potential difference graphs are used to show how the current through a component varies with the potential difference across it. They are called 'characteristic curves' - you should know all of the ones below and how to explain their shape.
Their skills, knowledge and understanding of how science works should be set in these substantive
contexts:






The current through a resistor (at a constant temperature) is directly proportional to the potential difference across the resistor.

Potential difference, current and resistance are related by the equation:

potential difference (volt, V) = current (ampere, A) x resistance (ohm,)

V = I R

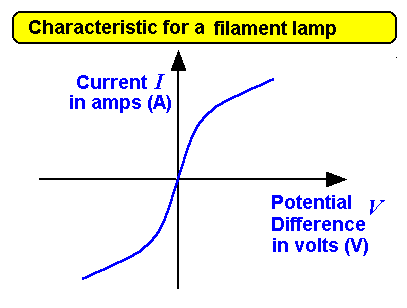

• The resistance of a filament lamp increases as the temperature of the filament increases.

Is used for illumination - gets brighter as the current through it increases.

    • The current through a diode flows in one direction only. The diode has a very high resistance in the reverse direction.

Can be used as a 'one-way' device in a circuit - only allows current to flow easily in one direction.

  • The resistance of a component can be found by measuring the current through, and potential difference across, the component.
• The current through a component depends on its resistance. The greater the resistance the smaller the current for a given potential difference across the component.


    • The resistance of a light-dependant resistor (LDR) decreases as light intensity increases.

• The resistance of a thermistor decreases as the temperature increases (ie knowledge of negative temperature coefficient thermistor only is required).

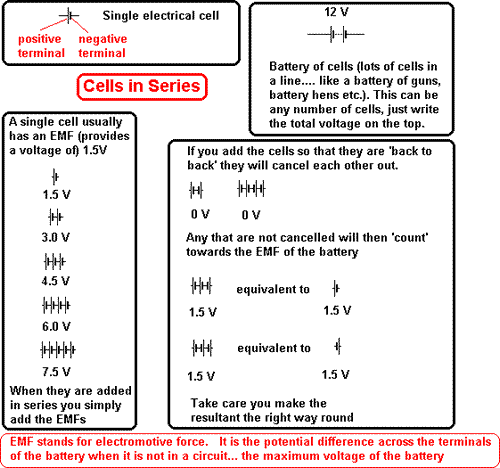

  • The potential difference provided by cells connected in series is the sum of the potential difference of each cell (depending on the direction in which they are connected).

  • For components connected in series:
– the total resistance is the sum of the resistance of each component
– there is the same current through each component
– the total potential difference of the supply is shared between the components.

    • For components connected in parallel:
– the potential difference across each component is the same
– the total current through the whole circuit is the sum of the currents through the separate components.
