Momentum Questions

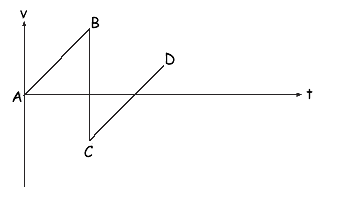

Q4. The diagram shows the velocity-time graph for a vertically bouncing ball, which is released above the ground at A and strikes the floor at B. The effects of air resistance have been neglected.
(a)
(i) What does the gradient of a velocity-time graph represent?
(ii) Explain why the gradient of the line CD is the same as line AB.
(iii) What does the area between the line AB and the time axis represent?
(iv) State why the velocity at C is negative.
(v) State why the speed at C is less than the speed at B.
(5 marks)
(b) The ball has a mass of 0.15 kg and is dropped from an initial height of 1.2m. After impact the ball rebounds to a height of 0.75m.
Calculate
(i) the speed of the ball immediately before impact,
(ii) the speed of the ball immediately after impact,
(iii) the change in momentum of the ball as a result of the impact,
(iv) the magnitude of the resultant average force acting on the ball during impact if it is in contact with the floor for 0.10 s.
(8 marks)
(Total 13 marks)
