Electric Fields - Multiple Choice Questions

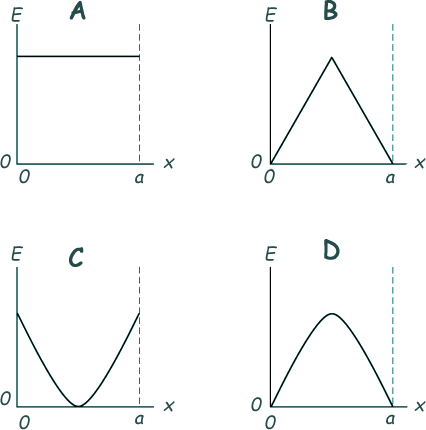

Q1. Two parallel metal plates of separation a carry equal and opposite charges.

Which graph best represents how the electric field strength E varies with the distance x in the space between the two plates?

Q2. A particle has a mass m and a charge q. It is accelerated through a potential difference V, over a distance d.

What is the average acceleration of the particle?

Q3. An electron moves through a distance of 0.10 m parallel to the field lines of a uniform electric field of strength 2.0 kN C−1 .

What is the work done on the electron?

A
zero
B
1.6 × 10−17 J
C
3.2 × 10−17 J
D
1.6 × 10−21 J





Also the structured questions on this topic

and the multiple choice questions on capacitors
