A level: Kinetic Theory Questions

Q9.

The graph shows how the pressure of an ideal gas varies with its volume

when the mass and temperature of the gas are constant.



(a) On the same axes, sketch two additional curves A and B, if the following changes are made.

(i) The same mass of gas at a lower constant temperature (label this A).

Lower temperature means lower KE - lower pressure at a given volume.

(ii) A greater mass of gas at the original constant temperature (label this B).

Greater mass means more molecules - increased bombardment and therefore higher pressure at a given volume.

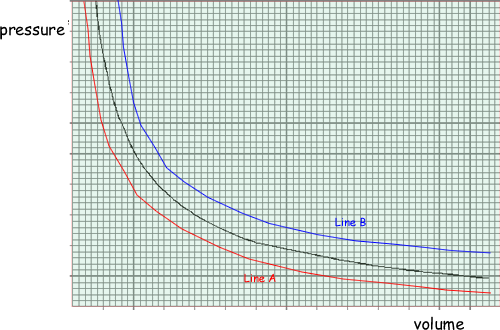

See graph: curve A below original, curve B above original both curves correct shape

(2 marks)

(b) A cylinder of volume 0.20 m3 contains an ideal gas at a pressure of 130 kPa and a temperature of 290 K.

Calculate:

(i) the amount of gas, in moles, in the cylinder,

n = pV/RT

n = 130 x 103 x 0.20/8.31 x 290

n = 10.4

n = 11 mol

(ii) the average kinetic energy of a molecule of gas in the cylinder,

Ek = 3/2 × 1.38 × 10–23 × 290

= 6.0 × 10–21 J

(iii) the average kinetic energy of the molecules in the cylinder.

Total KE = KE of one average molecule x number of molecules

Total KE = KE of one average molecule x number of moles x Avogadro Number

Total KE = 6.0 × 10–21 x 10.8  × 10.8 x 6.02 × 1023

Total KE = 3.9 × 104 J

(5 marks)

(Total 7 marks)
