Q6.

The table gives the average kinetic energy of gas molecules at certain temperatures.

Ek/J × 10–21	6.21	6.62	7.04	7.45	7.87	8.28
T/K	300	320	340	360	380	400

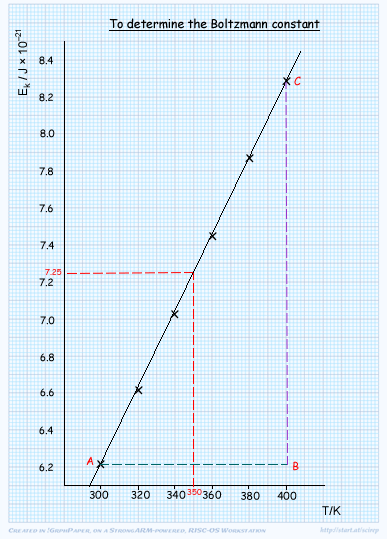

(a) On a sheet of A4 graph paper plot a graph of E_k against T.

Suitable scales to maximise the use of the graph paper, units on axis

Correct points (plotted within ½ square)

Best fit line (drawn with ruler)

(i) Use your graph to determine the average kinetic energy of gas molecules at 350 K.

E_k at 350 K = (accept 7.23 to 7.27) × 10^–21 J

You should clearly show on your graph how you came to your answer. Use dashed lines and mark values on the axes as I have done - this makes it easy for the examiner to see what you have done - and also makes it easy for you to check through your work.

(ii) Determine the gradient of your graph and hence calculate a value for the Boltzmann constant. Show all your working.

Draw a triangle and label it ABC.

State how the gradient corresponds to values on your graph.

Then put in the values from the graph and calculate the gradient. Don't forget the unit!

y/x = CB/AB

y/x = (8.28 - 6.21) x 10^-21/(400 - 300)

y/x = 2.07 x 10^-21/100

y/x = 2.07 x 10^-23 J/K

(accept 2.00 x 10^-23 to 2.15x 10^-23)

so, E_K = 3/2kT

Relating this to Y= mx + c we see that the gradient of our graph of E_k against T is equal to 3/2k

k = ²/₃ x gradient

k = ²/₃ x 2.07 x 10^-23

k = 1.38 ×10^–23 J K^–1

(8 marks)

(b) One of the assumptions of the kinetic theory is that collisions of gas molecules are elastic.

(i) State what is meant by an elastic collision.

In an elastic collision kinetic energy is conserved.

(ii) State another assumption of the kinetic theory.

Any one from:

time of collision is negligible (compared to time between collisions)

large number of molecules,

volume negligible (compared to volume of container),

no intermolecular forces,

rapid random motion of particles

(iii) Explain how the data in the table leads to the concept of absolute zero.

A sketch graph of E_k vs T/K gives a straight line because temperature is proportional to E_k.

If the graph was expanded we would get a line that went through the origin and at 0 K, E_k would be zero

(4 marks)

(Total 12 marks)
