GCSE Questions - Waves

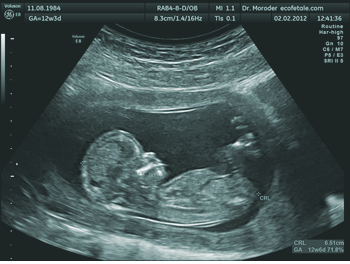

Q9. Ultrasound can be used to produce an image of an unborn baby.

(a)

(i) What is ultrasound?

[1 mark]

(ii) What happens to the ultrasound when it reaches the skin of an unborn baby? Tick one of the following:

It is all reflected and none is transmitted.
Some is reflected and some is transmitted.
None is reflected and it is all transmitted.

[1 mark]

(iii) Tick a medical use of ultrasound.

breaking up kidney stones
treating cancer
destroying bacteria

[1 mark]

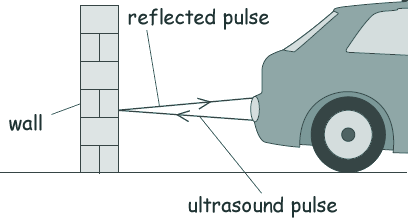

(b) A parking sensor on the back of a car emits an ultrasound pulse and receives the reflected pulse as shown in the graphic below.

Complete the sentence to describe how the time taken for the reflected pulse to return to the car changes as the car moves.

As the car moves closer to the wall the reflected pulse takes _ _ _ _ _ _ _ _ time to return to the car.

[1 mark]

(c) The parking sensor emits an ultrasound pulse. The reflected pulse is received 0.006 seconds later. The speed of ultrasound in air is 330 m/s. Calculate the distance from the car to the wall.

[3 marks]

(d) There are four parking sensors spaced equally along the back of the car. Suggest one advantage of using four sensors instead of just using one sensor.

[1 mark]

(Total 8 marks)
