GCSE Questions: Moments and Centre of Gravity
Q3.

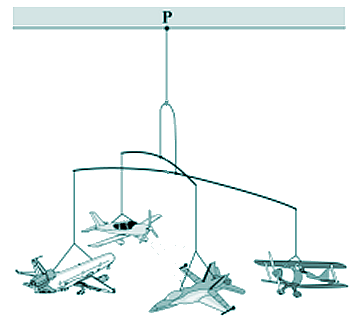

(a) The diagram shows a child's mobile. The mobile hangs from point P on the ceiling of the child's bedroom.
(i) Mark the position of the centre of mass of the mobile by drawing a letter X on a sketch of the diagram. Do this so that the centre of the X marks the centre of mass of the mobile.
(1 mark)
(ii) Explain why you have chosen this position for your letter X.
(2 marks)

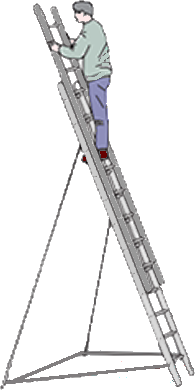

(b) The diagram shows a device which helps to prevent a ladder from falling over.
Use the term 'centre of mass' to explain why the ladder, in the situation shown, is unlikely to topple over. You may sketch a diagram to illustrate your explanation.
(3 marks)
(Total 6 marks)
