GCSE level questions on light

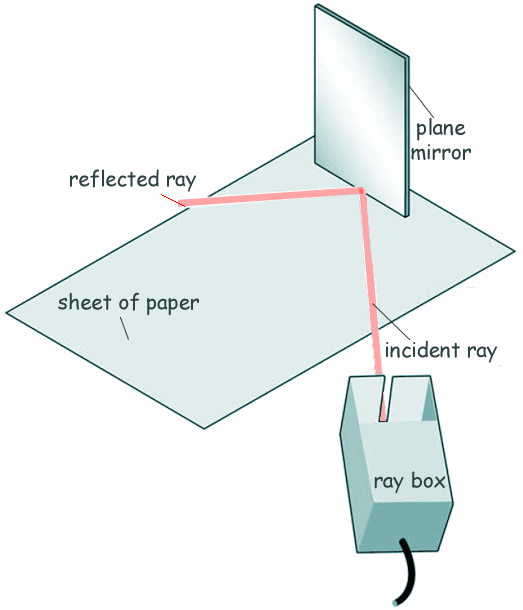

Q2. The diagram shows the apparatus a student used to investigate the reflection of light by a plane mirror. The student drew four ray diagrams for each angle of incidence.

The student then carefully measured the angle of reflection from each diagram.

The following table gives the student's results.


Angle of reflection
Angle of incidence
Test 1 Test 2 Test 3 Test 4
20°
19°
22°
20°
19°
30°
31°
28°
32°
30°
40°
42°
40°
43°
41°
50°
56°
49°
53°
46°



(a) For each angle of incidence, the angle of reflection has a range of values.

This is caused by an error. What type of error will have caused each angle of reflection to have a range of values?

[1 mark]

(b) Suggest what the student may have done during the investigation to cause each angle of reflection to have a range of values.

[1 mark]

(c) Estimate the uncertainty in the angle of reflection when the angle of incidence is 50°. Show how you determine your estimate.

[2 marks]

(d) The student concluded that for a plane mirror, the angle of incidence is equal to the angle of reflection. Explain whether you agree with this conclusion.

Use examples from the results in the table in your answer.

[2 marks]

(e) What extra evidence could be collected to support the student's conclusion?

[1 mark]

(f) State one change the student should make to the apparatus if he wants to use the same method to investigate diffuse reflection.

[1 mark]

(Total 8 marks)
