GCSE Standard Questions: Electric Circuits

Q5. The sketch-graph below shows the current–potential difference graph for three wires, A, B and C.





(a)

(i) Grom the graph, how can you tell that the temperature of each wire is constant?

The p.d. is directly proportional to current, giving a straight line with a constant gradient/slope is constant.

[1 mark]

(ii) Which one of the wires, A, B or C, has the greatest resistance? Explain your choice.

C as for a given p.d. the current in that wire is the smallest - indicating it has the highest resistance.

[2 marks]

(b) Ragnar measured the resistance of four wires. The table below shows the resistance of, and other data about, each of the four wires, J, K, L and M.



Wire
Metal type
Length/cm
Diameter/mm
Resistance/....
J
copper
50
0.17
0.36
K
copper
50
0.30
0.12
L
copper
100
0.30
0.24
M
constantan
100
0.30
7.00

[1 mark]

(i) The last column of the table should include the unit of resistance. What is name of the unit of resistance and its symbol?

The unit of resistance is the ohm symbol: Ω

[2 marks]

(ii) The resistance of a wire depends on many factors. Look at the table.

Which two wires from J, K, L and M show that the resistance of a wire depends on the length of the wire? Give a reason for your answer.

K and L as only length varies - the metal type and diameter is constant.

[2 marks]

(iii) Floki looked at the data in the table and wrote this conclusion:

'The resistance of a wire depends on the type of metal from which the wire is made.'

Floki could not be certain that his conclusion is true for all types of metal. Suggest what extra data is needed for him to be more certain that the conclusion is correct.

Floki needs to measure the resistance of wires made from several different metals of the same length and diameter.

Saying 'measure the resistance of more wires' was insufficient to get you a mark.

Identifying that 'they only use two metals' was also insufficient - you needed to specify more metals had to be investigated.

[1 mark]

(c) The resistance of a wire can be calculated using the readings from an ammeter and a voltmeter.

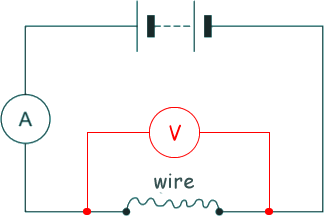

(i) Complete the circuit diagram below by drawing a voltmeter in the correct position in the circuit.

[1 mark]

(ii) In a circuit diagram, a wire can be represented by the symbol for a resistor.

Draw the circuit symbol for a resistor.

[1 mark]

(Total 10 marks)
