Multiple Choice: Forces, Dynamics and Mechanics

Q1. What is the gravitational field strength at the Earth's surface?

A 10N/kg
B 16N/kg
C 50N/kg
D 230N/kg



Q2. Cog X has 16 teeth and cog Y has 8 teeth.

Cog X is turned around two times. How many times does cog Y turn around?

A 1
B 2
C 4
D 8



Q3. What is the smallest number of forces needed to bend an object?

A 1
B 2
C 3
D 4

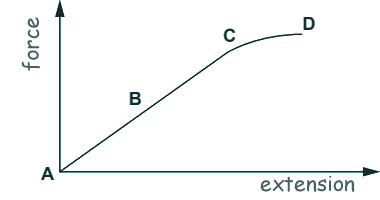

Q4. The diagram shows the relationship between force and extension for a spring.

Which letter on the graph shows the elastic limit of the spring being stretched?

A Position A
B Position B
C Position C
D Position D



Q5. An object travelled 800m in 40 seconds.

What is the speed of the object?

A 0.05 m/s
B 20 m/s
C 840 m/s
D 32,000 m/s



Q6. An object moved 20cm with a force of 20N.

Calculate the work done in moving the object.

A 0.4 J
B 4.0 J
C 40 J
D 400 J



Q7. In which of the following situations does the force cause a rotation?

A Bouncing on a trampoline
B Hitting a nail with a hammer
C Pushing a friend on a swing
D Sitting on a chair



Q8. Which of the following is a scalar quantity?

A Acceleration
B Displacement
C Force
D Speed



Q9. Which distances are the same?

A 1 × 10–3m and 1 µm
B 1 × 10–6m and 1 mm
C 1 × 10–9m and 1 nm
D 1 × 10–12m and 1 Gm

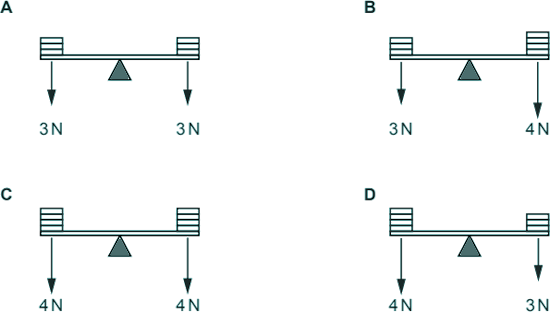

Q10. A student puts different weights on four balances.

Which balance will give a clockwise moment?

A
B
C
D
