Questions on Electric Circuits
Q4. Alice connects four light bulbs for her model house, as shown. She puts the bulbs into the holes in the back wall.
(a) When Alice turns the switch on, the bulbs do not light up. The batteries are not flat. None of the bulbs is broken. Why do the bulbs not light up?
1 mark
(b) Alice makes the circuit work. When she turns the switch on, the bulbs are not very bright. What must Alice add to the circuit to make the bulbs brighter?
1 mark
(c) The four bulbs in the circuit are the same. Which statement is correct?
A: Each bulb is the same brightness
B: Each bulb is of a different brightness
C: The bulbs at the top are brighter
D: The bulbs at the bottom are brighter
1 mark

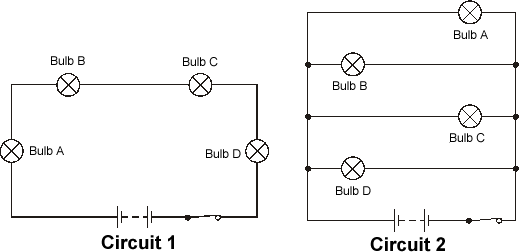

The diagrams show two ways to wire the model house.
(d)
(i) In circuit 1, bulb B breaks and goes out. What happens to the other bulbs in this circuit?
1 mark
(ii) In circuit 2, bulb C breaks and goes out. What happens to the other bulbs in this circuit?
1 mark
(e) In circuit 2, Alice adds another switch so that she can turn bulb A off while the other bulbs stay on. Write the letter 'S' on circuit 2 to show where Alice should add the switch.
1 mark
Maximum 6 marks
