Capacitor Questions

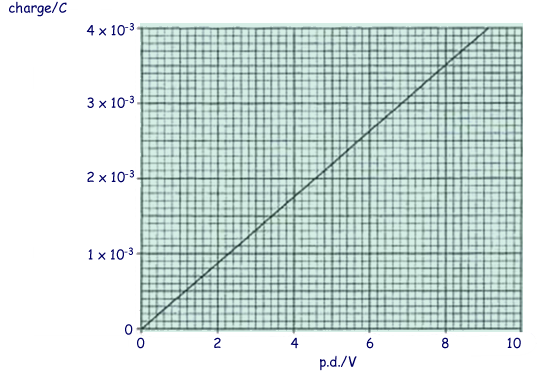

Q1. The graph shows how the charge of a capacitor varies with the p.d. across it.
Use the graph to find
a) the energy stored by the capacitor when charged to a potential difference of 8 V
(3 marks)
b) the capacitance of the capacitor
(3 marks)
(Total 6 marks)
