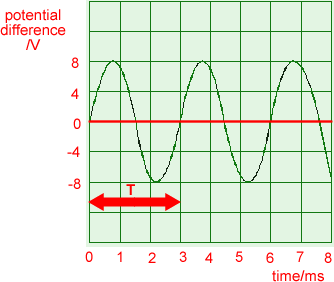

Q2. An alternating current (a.c.) source is connected to a resistor to form a complete circuit. The trace obtained on an oscilloscope connected across the resistor is shown below. The oscilloscope settings are: Y sensitivity 4.0V per division, time base 1.0 ms per division.
(Total 4 marks) |
