SHM - springs

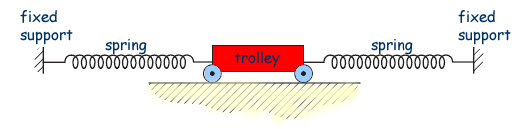

Q3. A trolley of mass 0.80 kg rests on a horizontal surface attached to two identical stretched springs, as shown in the diagram. Each spring has a spring constant of 30 Nm–1, can be assumed to obey Hooke's law, and to remain in tension as the trolley moves.

(a)

(i) The trolley is displaced to the left by 60 mm and then released. Show that the magnitude of the resultant force on it at the moment of release is 3.6 N.

(2 marks)

(ii) Calculate the acceleration of the trolley at the moment of release and state its direction.

(2 marks)

(b)

(i) The oscillating trolley performs simple harmonic motion. State the two conditions which have to be satisfied to show that a body performs simple harmonic motion.

(2 marks)

(ii) The frequency f of oscillation of the trolley is given by

where

m = mass of the trolley

k = spring constant of one spring.

Calculate the period of oscillation of the trolley, stating an appropriate unit.

(3 marks)

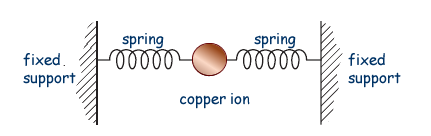

(c) Copper ions in a crystal lattice vibrate in a similar way to the trolley, because the inter-atomic forces act in a similar way to the forces exerted by the springs. The diagram below shows how this model of a vibrating ion can be represented.

(i) The spring constant of each inter-atomic 'spring' is about 200 Nm–1. The mass of the copper ion is 1.0 × 10–25 kg. Show that the frequency of vibration of the copper ion is about 1013 Hz.

(1 mark)

(ii) If the amplitude of vibration of the copper ion is 10–11m, estimate its maximum speed.

(1 mark)

(iii) Estimate the maximum kinetic energy of the copper ion.

(1 mark)

(Total 12 marks)
