GCSE Questions: Waves
Q2. A radar gun can be used to measure the speed of a car.

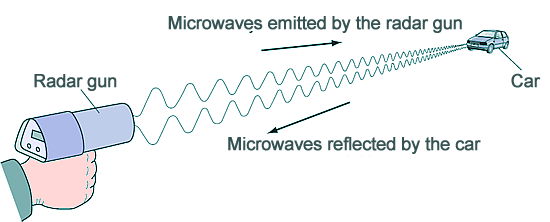

Microwaves are emitted by the radar gun and reflected by the car, as shown in the diagram.
(a) The microwaves reflected by the moving car have a different frequency from the microwaves emitted by the radar gun.
What is the name of the effect causing this change in frequency?
[1 mark]
(b) The data in the table below are measurements taken from three different cars on the same piece of road.
Car |
Frequency of
emitted microwaves
in kHz |
Frequency
of reflected
microwaves in kHz |
A |
27 000 000 |
27 000 002 |
B |
27 000 000 |
27 000 000 |
C |
27 000 000 |
26 999 997 |
(b)
(i) State which car in the table is moving towards the radar gun. Give a reason for your answer.
[2 marks]
(ii) State which car in the table is moving the fastest. Give a reason for your answer.
[2 marks]
(Total: 5 marks)
