National Grid - Electricity Distribution

Electricity is carried around the country by the National Grid.

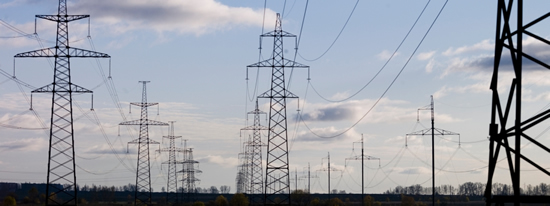

Pylons carry the electrical energy in cables from the power station to the towns, so the consumer can make use of it.

Electricity transmission lines provide the 'transport highways' that move electricity from the generation sources (power stations) to concentrated areas of customers (towns and cities). From there, the distribution system moves the electricity to where the customer uses it at a business or home.

Transmission systems are unique because they are designed to move this energy at the speed of light from the generator to the consumer since there is no long-term storage capability for electricity.

Electricity, when transmitted, flows over all available paths to reach the customer and it cannot be easily directed in one particular way. Therefore, the buying and selling of electricity requires careful co-ordination and monitoring of the electrical systems. If a problem develops somewhere it can affect other operations elsewhere.

After electricity is produced at power plants it has to get to the customers that use the electricity to make their life easier. The country is criss-crossed with power lines that "carry" the electricity. Large generators spin producing electricity with a voltage of about 25 kV.

Transmission across the country at a high voltage to cut energy loss

The electricity goes to a transformer at the power plant that boosts the voltage up to a high value. Power is the product of current and voltage. The same power can be transmitted at high voltage and low current as at low voltage and high current. However, power loss due to heat energy in the wires is I²R so by keeping current low heat produced in the wires is reduced. As there is less energy loss to the atmosphere as heat energy at high voltages, the electricity is therefore sent across the country at 275kV and 400kV.The long thick cables of transmission lines are made of copper or aluminum because they have a low resistance. This also cuts down on loss of energy as heat.

Votage is stepped down before it reaches the consumer

The power lines go into substations near businesses, factories and homes. Transformers are also used at the this end of the journey to bring the voltage down to 230V for domestic use.

When electricity enters your home, it must pass through a meter. A utility company worker reads the meter so the company will know how much electricity you used and can bill you for the cost.

Click here for details.

After being metered, the electricity goes through a fuse box into your home. The fuse box protects the house in case of problems. When a fuse "blows" or a circuit breaker "trips" something is wrong with an appliance or something was short- circuited.

Electricity production summary:

1. Water is turned into steam in the boilers by the heat energy from the fuel (burning fossil fuels or biomass or splitting atoms!).

2. The steam pressure drives the turbines.

3. The turbines spin the generators, which produce the electricity (by electromagnetic induction).

4. The electricity goes via the transformers to the National Grid - stepped up for transmission and then stepped down for use.

5. It is transmitted at high voltages to cut down energy losses as heat - high voltage means low current if energy transmission is steady - and heat loss depends on current squared for a given resistance of wire.
