Weight

 Masses get pulled or tugged at by a force called gravity. That tug is called the weight.

The force of gravity that acts on the mass of an object is called its weight.

Weight: Experienced In Gravity's Hold or Tug

The tug or hold of a gravitational field upon an object is a force, therefore weight is a force and is measured in newtons.

The Earth pulls at each newton of mass in an object on its surface with a force of 10N.

We say that the gravitational field strength of Earth is 10N/kg a pull of 10N on each kilogram of mass.

Definition: weight is the force of gravity acting on a mass that is positioned in a gravitational field.

There is an equation that links mass to weight in a gravitational field:


w = mg
w
= the weight (in newton)
m
= the mass of the object (in kilogram)
g
= the gravitational field strength at the position where the mass is placed (N/kg)

Suppose my mass is 60 kg

On Earth g = 10N/kg.

Therefore my weight is 600 newtons.

This is only true whilst I stay on Earth. On the moon, I would be very light and jumping would be very easy. This is because g (Moon) is only 1.67 N/kg. I would weigh a sixth of what I did on Earth (only 100N) , but it wouldn't mean I was any thinner.. I'd still have all those atoms and molecules that make up my mass - and my mass would still be 60 kg!

Click here to read Hannah's 'Mass and Weight Rap'

Weight always acts vertically downwards on the Earth's surface

Earth's gravity is pulling the mass towards its centre with the force of its weight

The weight of an object is distributed evenly around a point on the body called its 'centre of gravity'. The weight is said to 'act through the centre of gravity'. If you support it at this point it will balance. You can find this point on a flat shape by carrying out a simple experiment.

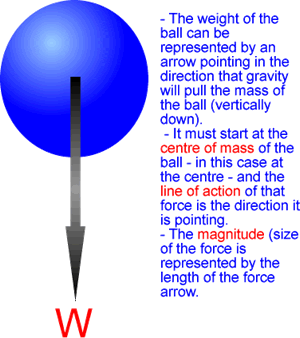

The weight of a body can be represented by a force arrow that points vertically down from the centre of mass. The arrow shaft is the line of action of the force arrow.

If the object is positioned on a sloping surface we have to resolve the weight vector to find the force pulling it down the slope and the reaction force with the ground. You will not have to do this until A Level.
