Design of a simple adder/subtactor

The steps in designing a simple one-bit Adder/Subtractor

  a3 a2 a1 a0

+

b3 b2 b1 b0
  __ __ __ __
  s3 s2 s1 s0
  • Write out a truth table.
  • From this determine the canonical form
  • We then need to minimize the boolean expression
  • and finally translate the expression into a logic gate circuit.

Tip: Look at breaking the problem down into smaller pieces that we can cascade or hierarchically layer. This makes working out the simplest boolean form much easier.

Lets start with the LSB - least significant bit.

  a3 a2 a1 a0

+

b3 b2 b1 b0
  s3 s2 s1 s0

Stage 1 - Truth table

a0
b0
s0
c1
0
0
0
0
0
1
1
0
1
0
1
0
1
1
0
1

The one bit adder does just that - adds two single bit values together.

The 'c' column is a 'carry' column.

When we add 01 and 01 we get 10 - that single bit value is zero - but we have to carry a value on to the next column.

The S0 output can be seen to be XOR (only high if a or b is high - not if both are high or both are low.

s0 = a0 XOR b0

c1 = a0 AND b0

C1 output can be seen to be high only when a and b are high so it is an AND relationship. We can now look at the second, and subsequent, columns - but this time there is a 'c' column to take into account too... as we might have to 'carry' a value.

  a3 a2 a1 a0



b3 b2 b1 b0

+

c3 c2 c1
  s3 s2 s1 s0

This time we have the possibility of a carry-bit from the addition of the LSB column.

a1
b1
c1
s1
c2
0
0
0
0
0
0
1
0
1
0
1
0
0
1
0
1
1
0
0
1
0
0
1
1
0
0
1
1
0
1
1
0
1
0
1
1
1
1
1
1

s1 = XOR (aibici) - XOR is high if number of inputs is odd.

c2 = a1b1+ b1c1 + a1c1

This can be applied to any line of the truth table... so if we replace the number of the bit-line we are examining with 'i' we get:

si = XOR (aibici)

ci+1 = aibi+ bici + aici

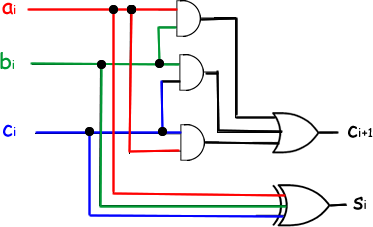

We can now draw a logic gate diagram for the adder.

The truth table and the logic gate diagram uses 'i' and 'i+1' etc to be 'general'. You could therefore do any level you were asked to.

For example if 'i' was 3 the values would be:

s3 = XOR(a3,b3,c3)

c4 = a3b3 +a3c3 +b3c3
