GCSE level optics questions

Q3.

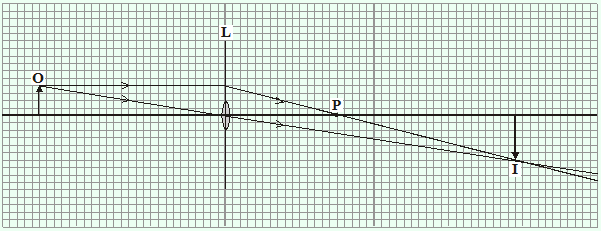

The ray diagram shows the position and size of the image, I, of an object, O, formed by a lens, L.

(a) What type of lens is shown in the ray diagram?

(1 mark)

(b) Name the point labelled P.

(1 mark)

(c) The ray diagram has been drawn to scale. Calculate the magnification of the object by the lens. Show clearly how you work out your answer.

(2 mark)

(d) How can you tell from this ray diagram that the image is a real image?

(1 mark)

(Total 5 marks)
